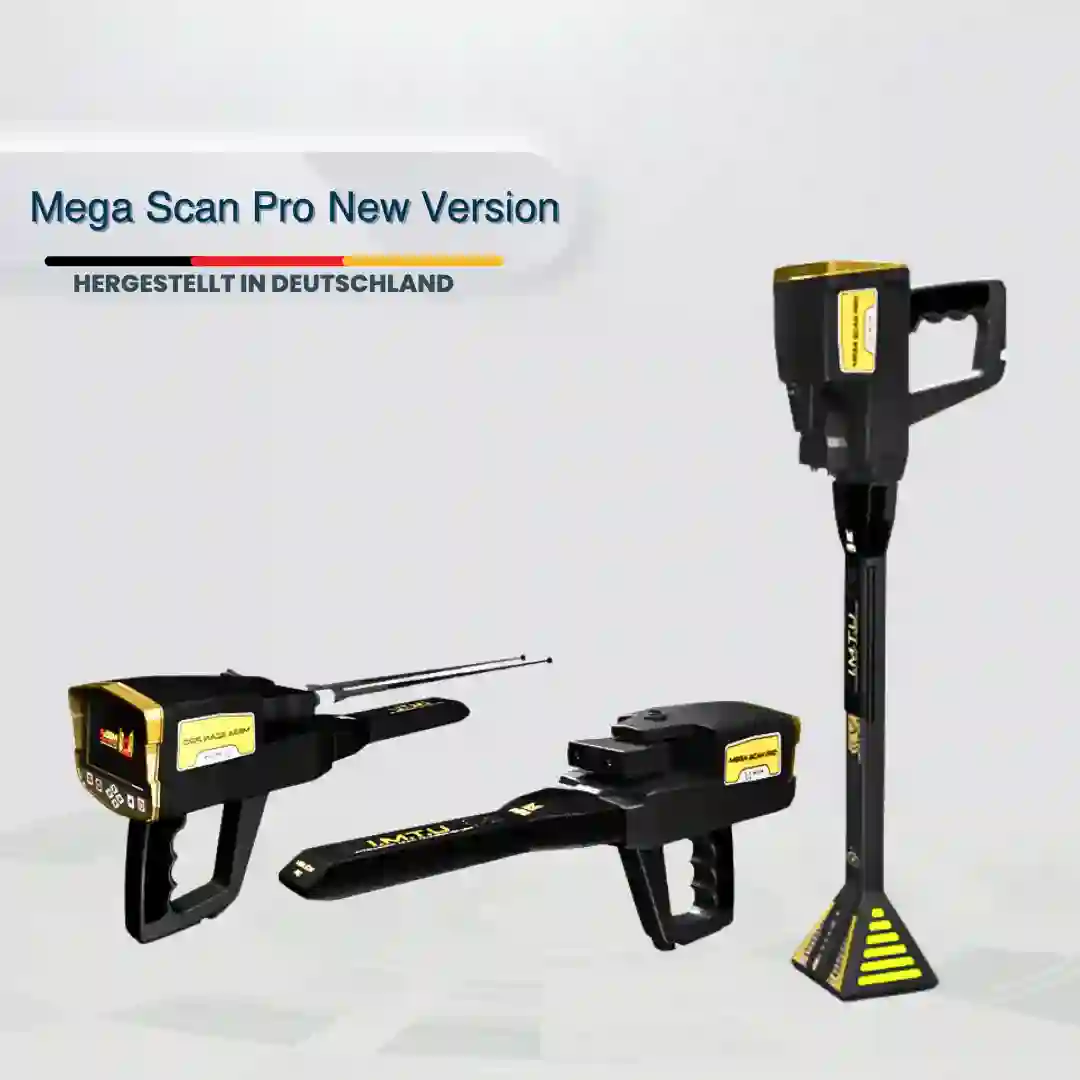

Mega Scan Pro New Edition Preis Nur $ 6700.00
Unique 3D Ground Scanning Technology: Utilizes the Vertical High Signal Transceiver (V.S.T) probe for detailed 3D visualization of scan data.
Mega Scan Pro New Edition has a Multi-Systems Multi-Purpose Solution: Combines a 3D ground scanner and a long-range metal detector in a single package.
Six Search Systems: Incorporates different metal detection technologies with the latest developments.

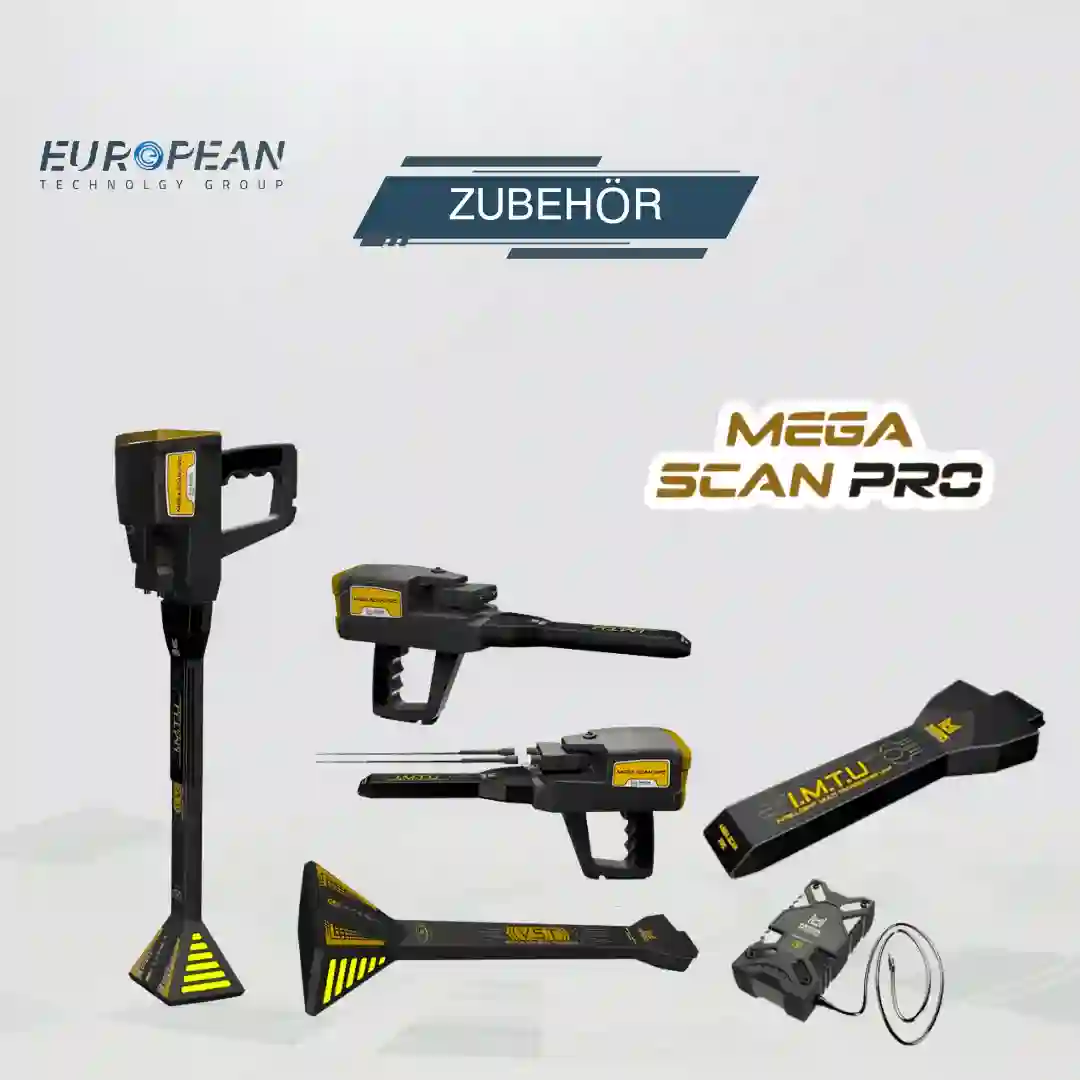

Powerful Detection Tools and Probes: MEGA SCAN PRO Includes I.M.T.U and V.S.T for accurate target identification.
External Rechargeable Battery: Operated via an external lithium-polymer battery located in a specially designed box, ensuring a long period of operation.
High-Definition Color LCD Screen: 5-inch screen for easy adjustment of settings in MEGA SCAN PRO, clear reading of numbers, and comfortable visual interpretation of results.
Search Systems of Mega Scan Pro
- Manual Long-Range Locator [MANUAL LRL]
- Automatic Long-Range Locator [AUTO LRL]
- Ionic System[IONIC]
- Bionic System [BIONIC]
- 3D Ground Scan System [GROUND SCAN]
- Pin Pointer System [PINPOINTER]

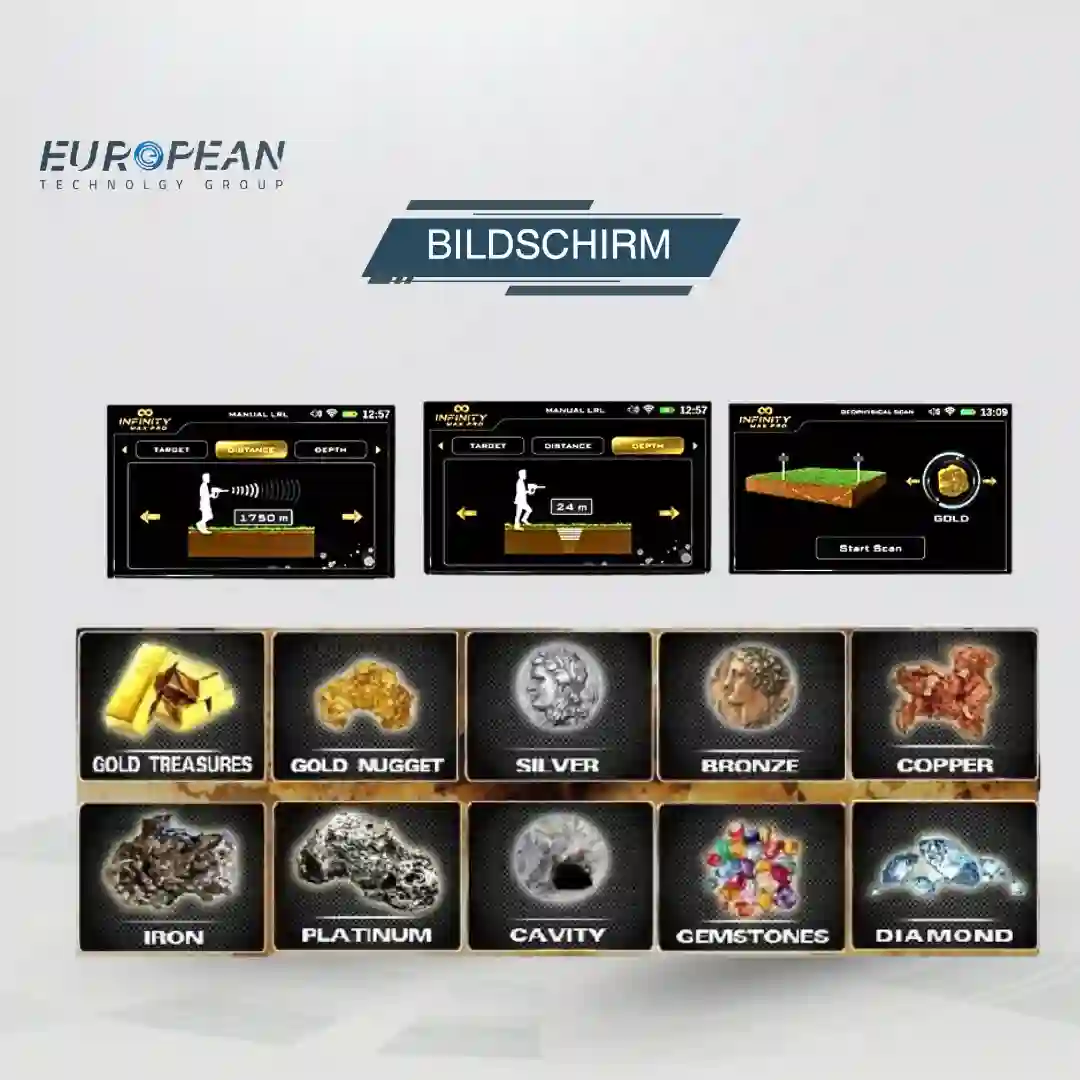

Manual Long-Range Locator [MANUAL LRL]
This search system incorporates an advanced sensor known as the Intelligent Multi Transceiver Unit (IMTU). This cutting-edge sensor emits high-frequency wave signals in the desired search direction. These waves intersect with magnetic field signals emitted by buried metal targets. A pair of antennas capture the reflected signals, which are converted into digital signals.
Within this system, the user can adjust the search values and settings manually based on their individual preferences before commencing the search. The user can customize the following options:
Target
The user has the option to select the target type, which refers to the specific metal composition of the target, they can choose from a range of preset search programs that encompass various categories of ferrous and non-ferrous metals.
For instance, options include gold, silver, copper, diamonds, and gemstones.
Distance
The distance value represents the scanning range in the forward direction, and the user can precisely select a value within the range of 0 to 2000 meters.
Depth
The maximum search depth value indicates the deepest level that the Mega Scan Pro device can reach using the current search settings.
Users can adjust this value precisely within a range of 0 to 50 meters.
- Once the previous search settings have been adjusted, a digital compass is displayed on the device’s screen.
- This compass includes an indicator that shows the device’s orientation, such as pointing toward the north.
- Additionally, a graded indicator in the form of a semicircle display represents the direction of antenna movement based on the user’s motion during the search.
- An essential feature aiding the user in accurately adjusting the device’s tilt angle is the gradient tilt indicator.
- This indicator reflects the degree of inclination of the device relative to the horizon, the correct values are shown in green, while incorrect values are in red, helping the user achieve precise and accurate device inclination.
Automatic Long-Range Locator [AUTO LRL]
The IMTU and antennas serve as the primary tools for detecting potential targets within the long-range scanning field.
This advanced search system is capable of covering vast areas in a designated space, effectively identifying all types of buried metals with corresponding percentage values. The user can adjust the following settings:
Distance
Determines the scanning range in the forward direction and can be set within a range of 0 to 3000 meters.
Depth
Sets the maximum depth at which potential targets can be detected, with a customizable range of 0 to 50 meters.
- Once the desired settings are selected, the user can initiate the search process.
- During the search, the antennas will move left or right based on the presence of nearby targets. A visual indicator on the screen will guide a progress bar displayed in gradient colors ranging from green (indicating minimum) to red (indicating maximum).
- The user of Mega Scan Pro should track the antenna movement until he receives optimal signals, and upon completion, the user can proceed to the “Report” screen, which presents a visual report in the form of four horizontal bars representing gold, silver, iron, and diamonds.
- Each bar displays an estimated percentage value indicating the likelihood of target composition.
Ionic System [IONIC]
- The ionic search system represents a groundbreaking advancement in metal detection technology, setting it apart from traditional systems found in competing products.
- Developed with a completely novel approach, this system leverages state-of-the-art technology to achieve highly precise detection of ion fields emitted by buried metal targets.
- This remarkable capability is possible through the implementation of the Intelligent Multi Transceiver Unit (IMTU), which ensures accurate reception and processing of signals. Additionally, users can adjust certain signal settings directly on the screen, enhancing the accuracy of the results obtained.
Upon selecting the ionic system, the Mega Scan Pro device will commence the search process automatically. The user can adjust the following settings:
Sensitivity
This setting determines the responsiveness of the ionic system during the search. As the system scans for targets, it emits specific scanning sounds that reflect the target’s ability or the distance between the user and the target.
The user can modify the sensitivity value to analyze the output sound. The sensitivity value can be set between 0 and 100.
Gain
The gain setting controls the signal strength or signal gain of the device. It is presented as a percentage value ranging from zero to 100.
To detect larger-sized targets, the user can decrease the gain value, while increasing the gain value enhances the detection of smaller targets.
The results screen displays the aforementioned values as circular percentage indicators on the right side.
Bionic System in the Mega Scan Pro device [BIONIC]
- This search system operates similarly to the ionic search system, utilizing the Intelligent Multi Transceiver Unit (IMTU) for the scanning process.
- However, there is a significant difference in how it functions. In this bionic system, the user captures ionic signals specifically from a particular sample metal object, such as a golden ring.
- The search is then directed towards capturing similar ionic signals emitted by metal objects buried underground within the surrounding area.
- In contrast to the random and unrestricted search approach of the ionic system, the bionic system follows predefined signals to guide the search process.
- Once the user selects the bionic system and directs the I.M.T.U towards a specific metal target the device initiates the search in alignment with the user’s movement.
The user can set the following options:
Sensitivity
The user can modify the sensitivity value to analyze the output sound generated during the search. The sensitivity value range is between 0 and 100.
Gain
This option controls the signal gain or strength. It is presented as a percentage value, ranging from 0 to 100. To optimize the detection of larger-sized targets, the user can decrease the gain value, while increasing it enhances the detection of smaller targets.
The result screen presents the aforementioned values as circular percentage indicators on both the right and left sides. Additionally, a signal power indicator is displayed below for reference.
3D Ground Scan System [GROUND SCAN]
- 3D Ground Scan system is an innovative search system incorporated in the new Mega Scan Pro devices introducing cutting-edge technology.
- Here in Mega Scan Pro, this powerful system utilizes a Vertical High Signal Transceiver (V.S.T) probe as a ground scanning tool to record the measurements of the scan in each scan line and scan point.
- These scan data are visualized as a 2D multi-colored grid on the Mega Scan Pro device screen, where every cell in the grid presents a scan point, and the color of the cell presents a specific object type like a ferrous metal or cavity for example.
- In addition, the user has the choice to visualize scanning data with more accuracy as 3D graphics inside the Multi Visual Analyzer app that he can install on any Android tablet, the 3D representation of data with different colors gives the user more broader view of scanned area and what it contains of different target types.
- With this advanced technology, users can effortlessly locate buried items and underground voids with enhanced speed and accuracy.
The user of the Mega Scan Pro device can adjust the following options:
Displaying Results
The user has the option to choose between two display modes:
- Device: In this mode, the device visualizes scan results on the device screen.
- Tablet: In this mode, scan data will be visualized on a connected tablet inside the Multi Visual Analyzer app.
Search Mode
This setting determines the method of performing the scan procedure and can be set to:
- Manual: If selected, the user will manually record the measurement of signals at each point.
- Automatic: In this mode, the device will automatically record measurements at every point at timed intervals.
Path
The path value signifies the user’s movement pattern during the scan process and offers options:
One Direction
If selected, the user will move along the search line, recording signals at each point. At the end of each line, they will return near the start of the previous line but with an offset distance to initiate scanning another line.
This creates a unidirectional scan pattern where all lines are parallel.
Zigzag
In this mode, the start point of the next search line is positioned near the end of the previous line. In other words, the user’s movement direction will be opposite for each consecutive line.
Size
This setting allows the user to configure the following:
- Width: Specifies the number of scan lines.
- Height: Determines the number of points in each scan line.
Start Point
The user of the Mega Scan Pro device can set the starting point within the search area (a rectangular region encompassing the scan lines and points).
- Left: If selected, the scan process will begin from the bottom-left corner of the search area.
- Right: In this mode, the scan process will initiate from the bottom-right corner of the search area.
Once all the settings have been configured as mentioned above, the Scan tab will provide a concise overview of the selected parameters. To initiate the scan procedure, the user simply needs to press the “OK” button located on the Mega Scan Pro device’s control panel.
While conducting the scan process, the measurements taken at each scan point will be visually displayed on the screen as a 2D grid. This grid is composed of rows and columns of cells, with each cell representing a specific area of the ground. The color of each cell corresponds to the characteristics and structure of the corresponding ground area, providing valuable insights into the detected features.
Pin Pointer System [PINPOINTER]
- The primary purpose of this system is to detect the presence and location of metal targets or cavities accurately.
- It achieves this with sound or graph feedback displayed on the screen, or through visual representations on a connected tablet via the app.
- The scanning process, which aims to identify potential target locations, is carried out using the V.S.T probe.
In the result screen of this system, there are many options:
Sensitivity
While conducting the search process and scanning for targets, the pin pointer system generates distinct scan sounds and graphs on the screen to indicate the presence of the target beneath the ground.
The user has the flexibility to adjust the sensitivity value at any point during the search. This allows them to analyze the output sound and graph effectively for a more accurate assessment of the target’s presence.
Calibration
User can use this option to calibrate the V.S.T probe sensor sensitivity at any time based on the ground type and the scan area state.
Reset
Reset the calibration process to default values.
The visual depiction of received signals on the Mega Scan Pro device screen takes the form of a curved graph. When the probe detects metal signals, the graph consists of upward-facing rectangles of varying lengths. These rectangles are color-coded, with a gradient from green to red at the center, representing the maximum signal strength. As the values decrease, the color gradient transitions back towards green.
In the case of detecting cavity signals, such as a tunnel, the graph is composed of downward-facing rectangles of different lengths.
Similar to metal signals, these rectangles are color-coded. However, in this case, the gradient ranges from green to dark blue at the center, indicating the highest signal values. The color then gradually shifts back towards green as the signal strength decreases.
Mega Scan Pro device program functions
- Mega Scan Pro software program features a user interface designed with the latest modern software technologies, focusing on graphical interface and user experience.
- It incorporates an attractive and contemporary design, employing a consistent color theme and graphical icons to present the search systems, options, and settings of the device in a user-friendly manner.
- Whether you are a novice or a professional user, the interface is designed to be easily understandable.
- The screens and controls are thoughtfully designed, considering the best guidelines for user experience. This ensures that users have the best possible experience, offering flexibility and ease of use.
- The controls allow for easy adjustment of various values and settings related to the different search systems available in the device with a focus on providing optimal control and usability, the interface aims to enhance the overall user experience.
Search Systems Screen
Users have the flexibility to select their desired search system by simply clicking on the corresponding search system icon from the list presented on the home screen.
With the easy-to-use buttons, users can effortlessly choose from a range of six different search systems this empowers users to tailor their search approach based on their specific preferences and requirements.
Language Screen in Mega Scan Pro
- To cater to prospectors worldwide, Mega Scan Pro is designed to accommodate users from different countries with its program and interfaces available in various internationally spoken languages.
- The device offers a seamless language-switching functionality within its settings, allowing users to effortlessly change the user interface language.
- With a selection of 12 languages, Mega Scan Pro covers the most important languages spoken globally. The supported languages include German, English, French, Spanish, Russian, Italian, Arabic, Hebrew, Persian, Turkish, Urdu, and Chinese.
- This extensive language support ensures that users from diverse backgrounds can comfortably and effectively utilize the device for their treasure-hunting endeavors.
Date & Time Settings
- Mega Scan Pro offers a valuable feature that allows users to set and maintain an accurate date and time, even when the device is turned off. This feature ensures that the device retains the correct values regardless of power status.
- To facilitate timekeeping during field searches, the device prominently displays a digital clock at the top right corner of the screen. This clock continuously shows the current time, enabling users to track the time without relying on external devices such as wristwatches or mobile phones. This is particularly important since carrying metal objects during the search can interfere with magnetic signal capture.
- The significance of the date and time functionality becomes apparent when saving search files or ground scanning values. These files are automatically saved with a name that includes the date and time of the file creation. This ensures that users can easily identify and analyze search processes conducted on specific dates and at specific locations. Having this information readily available empowers users to review and evaluate their search activities effectively.
Screen Settings
On this screen, users have control over several useful settings about the device’s screen. These settings include:
Energy Saving Mode
By activating this mode, users can set the duration after which the screen automatically turns off (if no buttons are pressed). This feature ensures that battery power is conserved for extended usage.
Screen Brightness
Users can adjust the screen brightness to a specific value that suits their preferences based on factors such as the time of day, weather conditions (e.g., foggy or rainy days), or personal comfort.
Lower brightness settings can also be utilized to conserve battery power effectively.
Audio Settings in Mega Scan Pro device
The Mega Scan Pro device offers a range of audio alerts that vary based on the selected search system.
You can customize the sound settings and volume of different alerts within the device’s settings. These include:
General Sound
This setting allows you to control the overall volume of the device’s sound, including the speaker’s sound volume.
Keypad sound
Adjusts the volume of the sound emitted when pressing buttons on the control panel.
Scan sound
This setting enables you to adjust the volume of the sound produced during the ground scanning process using the scanning tools.
Power
Opt for this option to conserve power and extend the battery life during device operation.
Enabling this feature can increase the battery lifespan by at least 50%, with the actual duration varying based on the selected search system and the type of connected sensor.
Scan Files
During the process of conducting a 3D ground scan, users can save the scan results as files in the memory of the device.
With a user-friendly and intuitive interface, users can effortlessly access and review all previously saved files. They can open these files to view the stored results. Furthermore, if needed, users can delete specific previously stored files to free up memory space for future searches.
Reset
Here the user can set the following options
- Reset Settings: reset general settings without deleting previously saved scan files.
- Factory Settings: reset to the factory values (the values when purchasing the device from the factory) while deleting the saved files
- Clear Memory: Clear memory to free up the device’s memory of all saved files.
Mega Scan Pro device information
This screen displays the device information, which are:
- Device Version
- Software version
- Device Model
- Serial Number
- Manufacturer Country
- QR code: the user can read it to obtain useful information about the device, including the manufacturer’s website
- Security settings
- Pin Lock: activate or deactivate the screen lock
- Set Pin: here user can set a PIN (a number that without entering correctly any person can’t access and log into the device software program)
